VIEM DECK 75

APPLICATIONS

Viemdeck75 steel profile is used in collaboration with concrete during the manufacturing of composite floors in metal buildings. It can also be used for roof covering of buildings with long span between purlins because of very high mechanical strength.

TECHNICAL CHARACTERISTICS

Quality of Steel: High resistance steel S320 according to ΕΝ 10326, hot dip galvanized (Ζ 275).
Initial Width: 1250mm
Total Width: 822mm
Beneficial Width: 751mm
Grooves / Sheet: 4
Deck Thickness: 0,75mm - 1,25mm Viem75
Length: free
(There is posibility to be shaped with or without special venations.)

INERTIA PROPERTIES

Thickness mm Iy (cm)4 Wy (cm)3
0,75 81,22 20,305
0,80 86,54 21,635
1,00 107,12 26,78
1,25 132,86 33,215

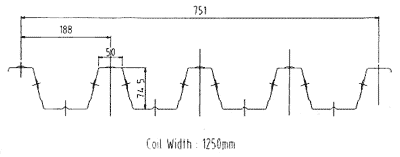

GEOMETRIC CHARACTERISTICS

Thickness mm Weight kg/m
0,75 7,47
0,80 7,94
1,00 9,91
1,25 12,35
