VIEMETAL

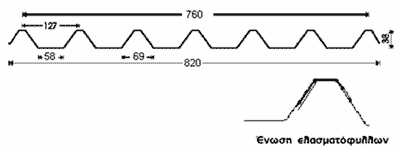

VIEM40

APPLICATIONS

VIEMETAL trapezoidal sheets are suitable for building coverings with long distances between purlins with increased resistance as well as for side coverings with a big height.

TECHNICAL CHARACTERISTICS

Quality of Steel: Viem40C280 hot dip galvanized Z 275 DX51D EN10143 or ZINC wih quantity of galvalumin AC2/A2150 or prepainted with thikness 5μm (primer) +20μm ±10%.
Initial Width: 1100mm or 1250mm
Beneficial Width: 760mm or 870mm
Grooves / Sheet: 7 or 8
Thickness: 0,4mm - 0,6mm

COLORS

The trapezoidal sheets are produced and painted in a big variety of colours on both sides.

  Covering
(mm)
Weight/
m
Galvanized 0,40 780 3430
0,45 780 3810
0,50 780 4250
0,60 780 5150
Aluzinc 0,40 780 3150
0,50 780 4050
Colored 0,50 780 4350

VIEM17

APPLICATIONS

VIEMETAL corrugated sheets are suitable for building coverings with small distances between purlins as well as for side coverings or decorative purposes.

TECHNICAL CHARACTERISTICS

Quality of Steel: Viem17C280 hot dip galvanized Z 275 DX51D EN10143 or ZINC wih quantity of galvalumin AC2/A2150 or prepainted with thikness 5μm (primer) +20μm ±10%.
Initial Width: 1100mm or 1250mm
Beneficial Width: 915mm or 1000mm
Grooves / Leaf: 10 or 11
Thickness: 0,3mm - 0,6mm

COLORS

The corrugated sheets are produced and painted in a big variety of colours on both sides.

GEOMETRIC CHARACTERISTICS

Thickness Initial
Width
Sheet
width
Covering Weight/
m
0,30 mm 915/1000 mm 836/913 mm 762/838 mm 2,155/2,355 kg
0,30 mm 915/1000 mm 836/913 mm 762/838 mm 2,514/2,747 kg
0,40 mm 915/1000 mm 836/913 mm 762/838 mm 2,873/3,140 kg
0,45 mm 915/1000 mm 836/913 mm 762/838 mm 3,232/3,532 kg
0,50 mm 915/1000 mm 836/913 mm 762/838 mm 3,592/3,925 kg
0,60 mm 915/1000 mm 836/913 mm 762/838 mm 4,310/4,710 kg

VIEM45

APPLICATIONS

VIEMETAL Roof deck trapezoidal form, appropriate for coverings of big surfaces such as industrial buildings due to the big beneficial width. It has high resistance in vertical forces because of its height and the special neuroses.

TECHNICAL CHARACTERISTICS

Quality of Steel: Viem45C280 hot dip galvanized Z 275 DX51D EN10143 or prepainted with thikness 5μm (primer) +20μm ±10%.
Initial Width: 1250mm
Beneficial Width: 988mm
Grooves / Sheet: 4
Thickness: 0,4mm - 0,6mm

COLORS

The Roof deck trapezoidal sheets are produced and painted in a big variety of colours on both sides.

GAPS / FORCES TABLE

  Force kg/m22
50 75 100 150 200 kg/m
Distance
mm
0,40 1,80 1,80 1,70 1,60 1,35 3950
0,45 2,00 2,00 1,85 1,70 1,45 4450
0,50 2,20 2,20 2,00 1,75 1,50 4900
0,60 2,70 2,70 2,45 2,25 1,75 5900

VIEM50

APPLICATIONS

Viemetal wall trapezoidal sheet is suitable for long span side coverings of buildings, such as industrial buildings, because of the big beneficial width and its high mechanical strength.

TECHNICAL CHARACTERISTICS

Quality of Steel: Viem50C280 hot dip galvanized Z 275 DX51D EN10143 or prepainted with thikness 5μm (primer) +20μm ±10%.
Initial Width: 1250mm
Beneficial Width: 1000mm
Grooves / Sheet: 4
Thickness: 0,4mm - 0,6mm

GEOMETRIC CHARACTERISTICS

Thickness Weight (kg/m) Beneficial
Weight
1,4 3950 1000mm
0,45 4450 1000mm
0,5 4900 1000mm
0,6 5900 1000mm

COLORS

The trapezoidal decks for side coverings are produced and painted in a big variety of colours on both sides.


VIEM33

APPLICATIONS

VIEMETAL metal tile can be used for roof coverings with traditional character. It has big resistance in forces because of its form and emulates the formal tile with 330mm length but also can be prodused in any length.

TECHNICAL CHARACTERISTICS

Quality of Steel: Viem33C280 hot dip galvanized Z 275 DX51D EN10143 or prepainted with thikness 5μm (primer) +20μm ±10%.
Initial Width: 920mm
Beneficial Width: 700mm
Grooves / Sheet: 4
Thickness: 0,4mm - 0,6mm
Tile Length: Standard is 330mm per step but can produse any length.

GEOMETRIC CHARACTERISTICS

No of tiles Sheet Length
(mm)
2 777
3 1110
4 1443
5 1776
6 2109
7 2442
8 2775
9 3108
10 3441
11 3774
12 4107

COLORS

The metal tile sheets are produced and painted in a big variety of colours on both sides.
